Overhead Crane Manufacturers in Pune & Suppliers in Pune
Barage Krannes is prominent Overhead Crane manufacturers and suppliers in Pune. We are experts in providing Overhead Crane solutions that are high-performance in order to improve the efficiency of material handling in the various industries. Being highly innovative, precise, and safety-oriented, we build cranes that guarantee a comfortable movement of loads and their long-term use. We collaborate with customers more closely to learn how they operate and deliver tailor-made systems supported by professional installation and reliable maintenance. Our overhead lifting solutions are durable, efficient and affordable.

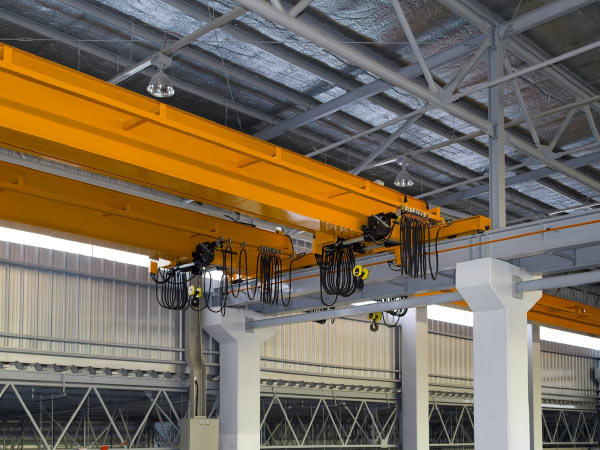

What is Overhead Crane?
It is a system that is used to carry heavy loads safely and efficiently by a raised bridge, runway and a hoist. It allows easy moving of material vertically and horizontally as well as in factories, warehouses, and industrial plants, which are designed and built to facilitate movement of heavy material easily.
Types of Overhead Crane
We are one of the major Overhead Crane manufacturers in Pune and have a large variety of industrial cranes to suit the various operational requirements. The key categories are listed below:
- Configuration Types
- Top Running: This system is based on rails that run over the beam of the runway which are supported by columns of the buildings. It provides the greatest lifting height and is good in handling very heavy weight.
- Under Running: In this case, the crane is operating on the lower flange of runway beams which are supported by the roofing. It should be used in the best situations where dealing with facilities of limited headroom or limited clearance.
- Girder Types
- Single Girder: This design is an affordable solution in light to moderate lifting with one bridge girder and a hoist traveling on the bottom of the girder.
- Double Girder: Constructed of two bridge girders and a hoist on top mounted rails, this design can carry heavier loads and has more hook height to raise high or bulky objects.
- Other Types
- Workstation Cranes: These cranes are lightweight, modular, and can be installed anywhere in small areas to handle the exact lifting of the area. They are favoured when it comes to repetitive operations that are precision oriented.
- Monorail Cranes: These cranes move their loads along a predetermined path using one beam or track; hence, they are effective in production lines and assembly.
- Gantry Cranes: These cranes have legs that carry the bridge on rails or wheels and these make the crane flexible either inside or outside where the overhead structural support is not present.
Technical Specifications of Overhead Crane
As topmost Overhead Crane suppliers in Pune we have added below a sheet of technical specifications for this industrial crane.
| Category | Specification Details |
|---|---|
| Capacity | Ranges from 1 Ton to 100 Tons, tested at 125% of Safe Working Load (SWL) for safety. |
| Span | Customizable from 5 to 30 meters based on site and application. |
| Lifting Height | Typically 6 to 12 meters, adjustable as per requirement. |
| Lifting Speed | 3 – 5 m/min for smooth and precise vertical movement. |
| Cross-Travel Speed | 10 – 15 m/min for trolley motion across the bridge. |
| Long-Travel Speed | 10 – 20 m/min for crane movement along the runway. |
| Work Class / Duty Cycle | IS 3177 / IS 807, classified from A3 (light) to A8 (heavy duty). |
| Brakes | Electro-hydraulic or electromagnetic brakes with 50% higher restraining torque than load torque. |
| Hook | Forged steel, swivelling single shank type as per IS 3815. |
| Wire Rope | High-tensile galvanized wire rope conforming to IS 2266:2002. |
| Wheels | Forged steel wheels (hardness 300–400 BHN) with anti-friction bearings. |
| Motors | Crane-duty motors (S4, 40% CDF) with Class F insulation and IP55 protection. |
| Girder | Single or double box-type girder made from mild steel (IS 2062). |
| Control System | Operated via pendant push button or radio remote control. |
| Power Supply | Shrouded conductor system with copper conductors and protective PVC casing. |
Benefits of Overhead Crane
Being Overhead Crane manufacturers in Pune we assure that our bridge cranes will provide outstanding value by the following benefits:
- Efficiency in Material Movement: The overhead cranes allow the quick and efficient movement of the heavy goods that decrease the time spent on their handling and enhance the efficiency of the overall working process.
- Improved Workplace Safety: They eliminate the chance to be injured as they replace manual lifting and make sure that dangerous or heavy materials are handled safely.
- Maximum Space Efficiency: These cranes work over the ground, which allows them to clear the ground space to place machinery, storage or other activities to enhance the layout of the facility.
- Large Precision and Fluent Action: Their sophisticated control systems ensure a good load positioning and constant movement, which is suitable in tasks demanding accuracy.
- Cost-Effective Long-term Work: Less labour requirement, lower damage of materials, and long performance benefits are a great saving in the long run.
Applications of Overhead Crane
We are the Overhead Crane suppliers in Pune, and our cranes find application in most industrial sectors because of their efficiency and reliability.
- Manufacturing Units: They facilitate the flow of raw materials, machine parts and finished product within production regions which make the flow of work smooth.
- Warehouses and Logistics Centres: They are ideal when it comes to managing heavy pallets and bulk goods as they aid in loading, unloading and orderly arrangement of materials.
- Construction Sites: Overhead cranes are significant in that they help in the process of lifting and placing of steel structures, concrete sections, and other heavy construction materials.
- Automotive Industry: Usually, it is used to move engines, vehicle parts and to facilitate the assembly-line processes with high accuracy.
- Steel and Metal Industries: They are necessary in the process of transporting and moving heavy coils, metal sheets and manufactured products through safe and precise handling of materials in a harsh environment.
Why Choose Us?
- Advanced Engineering Excellence: Our overhead cranes are designed with high precision of superior materials and new technology which guarantees them reliability and longevity in their performance.
- Customized System Design: We develop and provide crane systems to fit your special lifting demand, work environment design, and industry demands.
- Complete Operational Support: We offer all the support needed to ensure that your crane is running smoothly and efficiently with installation and maintenance as well as special after sales services.
Barage Krannes is well known Overhead Crane manufacturers and suppliers in Pune. We are proud of providing the solution of Overhead Cranes that integrate safety, effectiveness, and excellent engineering to meet the changing demands of the contemporary industries. Our cranes are engineered to make the heavy material handling process easier and provide standard performance and durability. We have a passion to deliver quality, customized, and committed service lifting systems that will result in higher productivity and safer working environments. We are your preferred supplier of reliable and innovative overhead crane solutions in various industries. Reach Out to us for more information.
FAQ’s
There are the three fundamental types, namely bridge cranes, gantry cranes, and monorail cranes, which are aimed at various lifting and movement requirements.
It operates on the concept of mechanical advantage, with the help of hoist and trolley that is used to lift and transport heavy loads horizontally within a specified space.
It may have a lifting capacity of as little as few hundred kilograms and much more than 800 tons in the case of heavy industrial cranes.
